Fuji Electric SC-N11 contactor 350 A, coil DC 100 to 120 V
- Schirmer item number
- 2176
- Manufacturer
- Fuji Electric
Available
1,190.00 €*
1,000.00 € net, plus 19 % VAT (delivery to Germany)
* All prices incl. statutory VAT, plus shipping costs
Free
Estimate for this item and the selected quantity. Final totals and any tax adjustments are calculated at checkout.
We dispatch items in stock within 1–2 working days of receiving payment, or after order confirmation for purchases on invoice. Delivery after dispatch: Germany 1–3 working days, other EU countries 3–7 working days, Switzerland, Norway, Iceland and Liechtenstein 5–10 working days.
Non-binding. We will confirm price and availability.
Secure payment methods
Insured shipping
All items are shipped insured, including DHL tracking. Express shipping is available on request.
Questions about this product?
Please compare the model and version with your part. Unsure about compatibility or what is included? Ask us about this item.
Product details & specifications

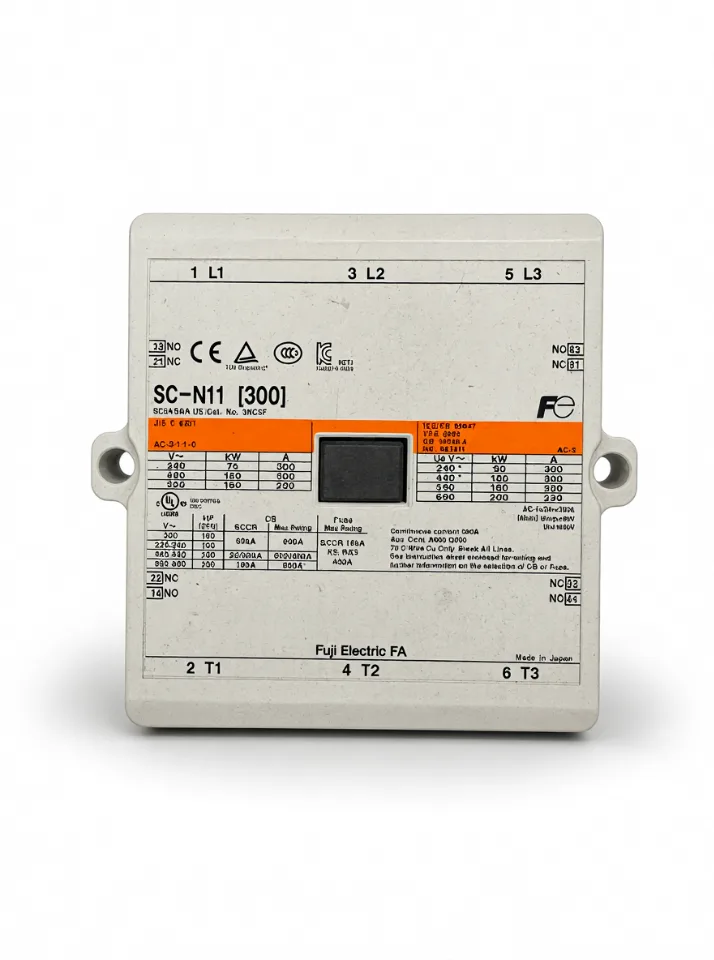

The SC-N11 is a three-pole magnetic contactor of frame size N11 with a conventional thermal current of 350 A. It has auxiliary contacts with two normally open and two normally closed contacts, screw terminals for the main circuits and a plastic housing with lateral mounting lugs.
General
| Manufacturer | Fuji Electric |
|---|---|
| Type / model | SC-N11 |
| Item number | 2176 |
| Order number | SC-N11 |
| Series | SC |
Technical data
| Frame size | N11 |
|---|---|
| Poles | 3 |
| Max. motor power AC-3 200-240 V | 90 kW |
| Max. motor power AC-3 380-440 V | 160 kW |
| Max. motor power AC-3 500-550 V | 160 kW |
| Max. motor power AC-3 600-660 V | 200 kW |
| Rated operational current AC-3 200-240 V | 300 A |
| Rated operational current AC-3 380-440 V | 300 A |
| Rated operational current AC-3 500-550 V | 230 A |
| Rated operational current AC-3 600-660 V | 230 A |
| Rated operational current AC-1 | 350 A |
| Conventional thermal current | 350 A |
| Auxiliary contacts | 2 NO + 2 NC |
| Coil voltage | DC 100 to 120 V (according to shop title) |
