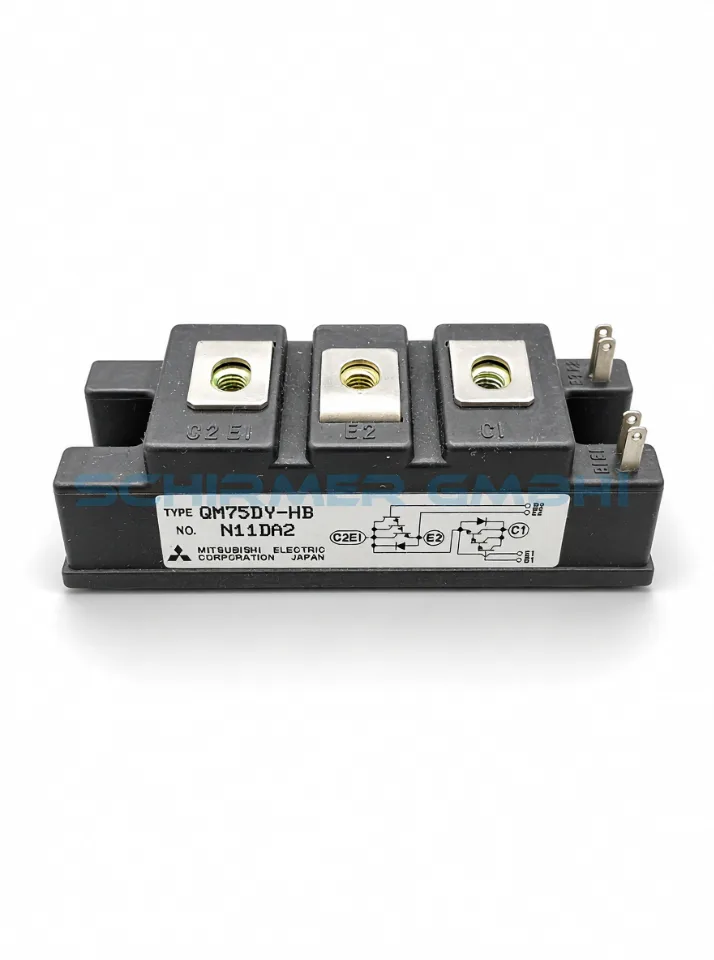

Mitsubishi Electric QM75DY-HB Transistor Module 75A 600V
- Schirmer item number
- 129610
- Manufacturer
- Mitsubishi Electric
Available
107.10 €*
90.00 € net, plus 19 % VAT (delivery to Germany)
* All prices incl. statutory VAT, plus shipping costs
Free
Estimate for this item and the selected quantity. Final totals and any tax adjustments are calculated at checkout.
We dispatch items in stock within 1–2 working days of receiving payment, or after order confirmation for purchases on invoice. Delivery after dispatch: Germany 1–3 working days, other EU countries 3–7 working days, Switzerland, Norway, Iceland and Liechtenstein 5–10 working days.
Non-binding. We will confirm price and availability.
Secure payment methods
Insured shipping
All items are shipped insured, including DHL tracking. Express shipping is available on request.
Questions about this product?
Please compare the model and version with your part. Unsure about compatibility or what is included? Ask us about this item.
Product details & specifications
Isolated bipolar transistor module with two transistors in half-bridge configuration, each rated for 75 A collector current and 600 V collector-emitter voltage. Each leg has an antiparallel freewheeling diode, the housing measures 94 x 34 mm and is isolated at 2500 V AC.
General
| Manufacturer | Mitsubishi Electric |
|---|---|
| Type / Model | QM75DY-HB |
| Item number | 129610 |
| Series | QM |
Technical Specifications
| Circuit | 2 transistors, half bridge (C1, C2E1, E2) |
|---|---|
| Collector-emitter voltage VCEX | 600 V |
| Collector-base voltage VCBO | 600 V |
| Emitter-base voltage VEBO | 7 V |
| Collector current IC (DC) | 75 A |
| Collector reverse current −IC (diode, DC) | 75 A |
| Power dissipation PC (TC = 25 °C) | 350 W |
| Base current IB (DC) | 4.5 A |
| Diode surge current −ICSM | 750 A |
| DC current gain h FE | min. 750 |
| Collector-emitter saturation voltage VCE(sat) | max. 2.5 V (IC = 75 A, IB = 100 mA) |
| Base-emitter saturation voltage VBE(sat) | max. 3.0 V |
| Diode forward voltage | max. 1.8 V |
| Turn-on time ton | max. 2.0 µs |
| Storage time ts | max. 8.0 µs |
| Fall time tf | max. 3.0 µs |
| Thermal resistance Rth(j-c) transistor | max. 0.35 °C/W per half |
| Thermal resistance Rth(j-c) diode | max. 1.3 °C/W per half |
| Junction temperature Tj | −40 to +150 °C |
| Storage temperature | −40 to +125 °C |
| Isolation voltage | 2500 V AC (1 min) |
| Main terminals | M5 |
| Mounting screws | M6 |
| Dimensions | 94 x 34 mm |
| Weight | 210 g (typ.) |
| Approval | UL recognized (File No. E80271) |
