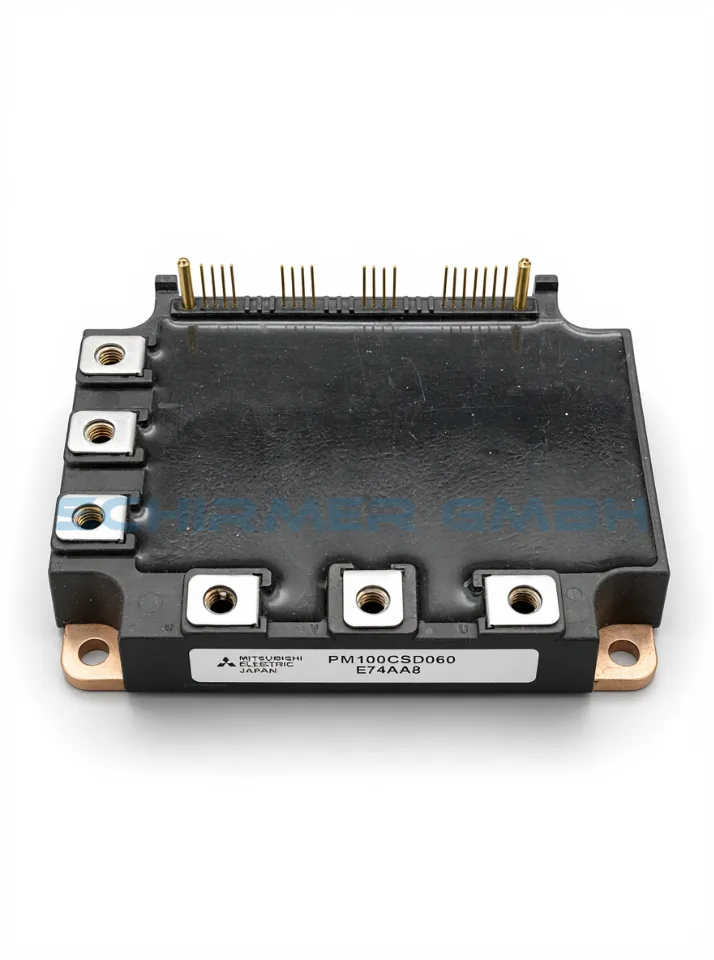

Mitsubishi PM100CSD060 Intelligent Power Module 600V 100A
- Schirmer item number
- 159710
- Manufacturer
- Mitsubishi Electric
Available
158.27 €*
133.00 € net, plus 19 % VAT (delivery to Germany)
* All prices incl. statutory VAT, plus shipping costs
Free
Estimate for this item and the selected quantity. Final totals and any tax adjustments are calculated at checkout.
We dispatch items in stock within 1–2 working days of receiving payment, or after order confirmation for purchases on invoice. Delivery after dispatch: Germany 1–3 working days, other EU countries 3–7 working days, Switzerland, Norway, Iceland and Liechtenstein 5–10 working days.
Non-binding. We will confirm price and availability.
Secure payment methods
Insured shipping
All items are shipped insured, including DHL tracking. Express shipping is available on request.
Questions about this product?
Please compare the model and version with your part. Unsure about compatibility or what is included? Ask us about this item.
Product details & specifications
The Mitsubishi PM100CSD060 is an Intelligent Power Module (IPM) for inverters, servo drives and motor control systems. The module integrates a 3-phase 600V/100A IGBT bridge with gate driver and protection functions.
General
| Manufacturer | Mitsubishi Electric |
|---|---|
| Type / Model | Mitsubishi PM100CSD060 Intelligent Power Module 600V 100A |
| Article Number | 159710 |
| Category | IGBT Modules |
Technical Data
| Module Type | Intelligent Power Module (IPM) |
|---|---|
| Topology | 3-phase IGBT bridge |
| Collector-Emitter Voltage | 600 V |
| Collector Current | 100 A |
| Peak Current | 200 A |
| Switching Frequency | up to 15 kHz |
| Power Dissipation | 328 W |
| Isolation Voltage | 2500 Vrms |
Protection and Temperature Data
| Protection Functions | Overcurrent, short-circuit, overtemperature and undervoltage protection |
|---|---|
| Junction Temperature | -20 °C to +150 °C |
| Case Temperature | -20 °C to +100 °C |
| IGBT Technology | 4th generation |
| Typical VCE(sat) | 1.7 V |
