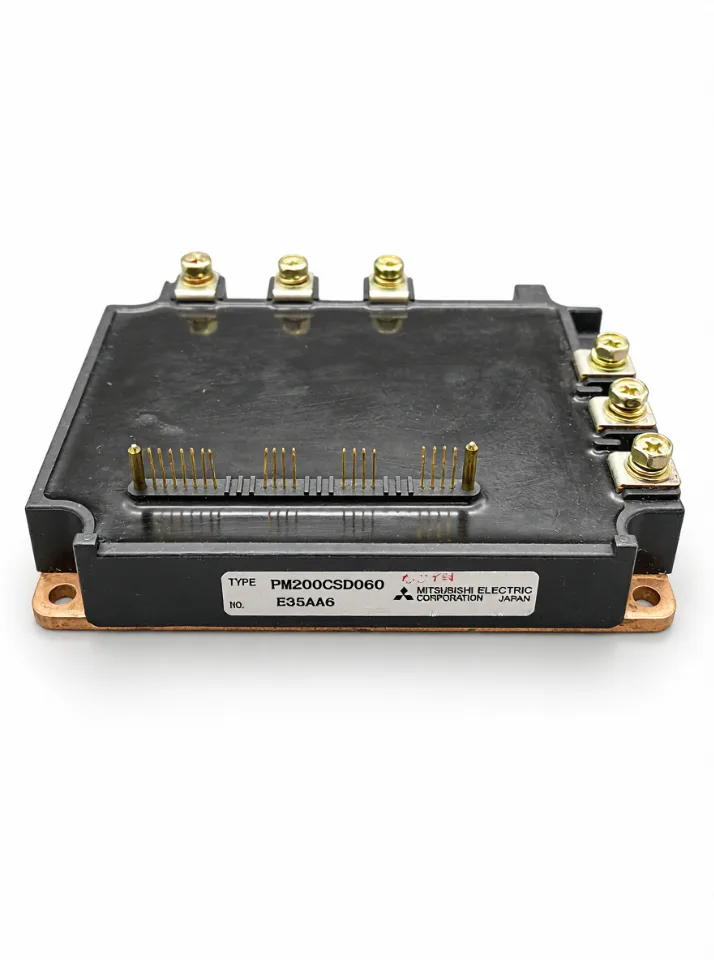

Mitsubishi PM200CSD060 Intelligent Power Module 600V 200A
- Schirmer item number
- 1003610
- Manufacturer
- Mitsubishi Electric
Available
333.20 €*
280.00 € net, plus 19 % VAT (delivery to Germany)
* All prices incl. statutory VAT, plus shipping costs
Free
Estimate for this item and the selected quantity. Final totals and any tax adjustments are calculated at checkout.
We dispatch items in stock within 1–2 working days of receiving payment, or after order confirmation for purchases on invoice. Delivery after dispatch: Germany 1–3 working days, other EU countries 3–7 working days, Switzerland, Norway, Iceland and Liechtenstein 5–10 working days.
Non-binding. We will confirm price and availability.
Secure payment methods
Insured shipping
All items are shipped insured, including DHL tracking. Express shipping is available on request.
Questions about this product?
Please compare the model and version with your part. Unsure about compatibility or what is included? Ask us about this item.
Product details & specifications
Intelligent power module in flat-base design with isolated housing and six 4th generation IGBTs in three-phase bridge configuration for 600 V and 200 A. Gate drive as well as protection and fault output for overcurrent, short circuit, overtemperature and undervoltage are integrated.
General
| Manufacturer | Mitsubishi Electric |
|---|---|
| Type / Model | PM200CSD060 |
| Item number | 1003610 |
| Series | CSD (IPM 4th generation) |
Technical Specifications
| Collector-emitter voltage VCES | 600 V |
|---|---|
| Collector current ±IC (TC = 25 °C) | 200 A |
| Peak collector current ±ICP | 400 A |
| Power dissipation PC (TC = 25 °C) | 595 W |
| Circuit | 3-phase inverter (6 IGBTs with freewheeling diodes) |
| Switching frequency (design) | 15 kHz |
| VCE(sat) | typ. 1.7 V, max. 2.3 V (IC = 200 A, Tj = 25 °C) |
| Supply voltage VD (max.) | 20 V |
| Short-circuit protected DC link voltage VCC(PROT) | 400 V |
| DC link peak voltage VCC(surge) | 500 V |
| Thermal resistance Rth(j-c) IGBT | max. 0.21 °C/W |
| Thermal resistance Rth(j-c) diode | max. 0.35 °C/W |
| Junction temperature Tj | −20 to +150 °C |
| Case temperature TC | −20 to +100 °C |
| Storage temperature | −40 to +125 °C |
| Isolation voltage | 2500 Vrms (60 Hz, 1 min) |
| Protection functions | Overcurrent, short circuit, overtemperature, undervoltage |
| Control terminals | 19 |
