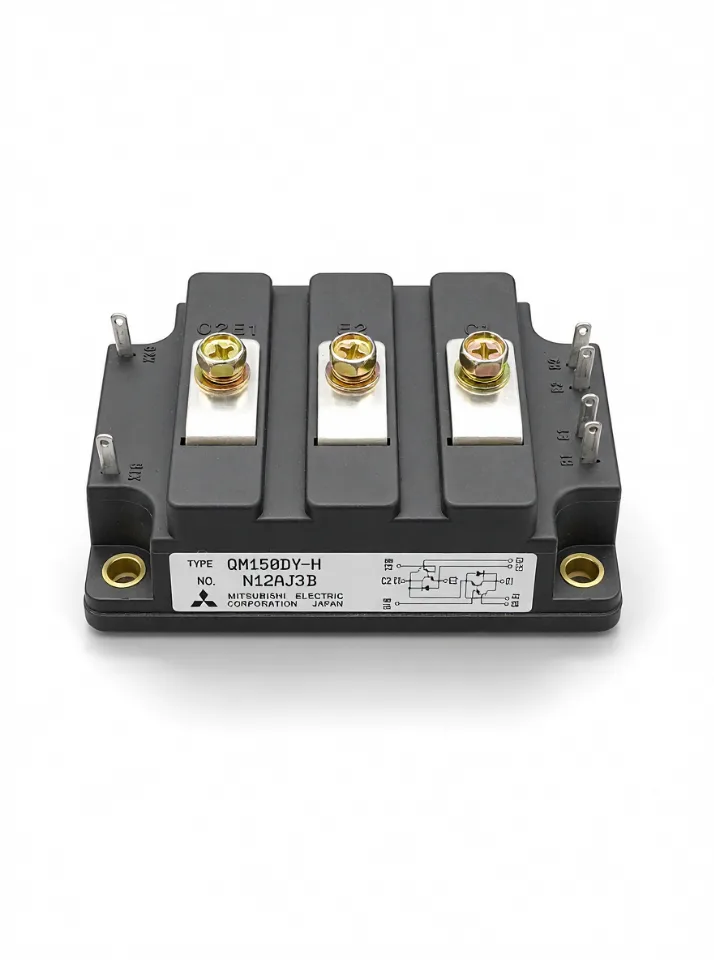

Mitsubishi QM150DY-H Darlington Transistor Module 600V 150A
- Schirmer item number
- 172410
- Manufacturer
- Mitsubishi Electric
Available
95.20 €*
80.00 € net, plus 19 % VAT (delivery to Germany)
* All prices incl. statutory VAT, plus shipping costs
6.19 €
Estimate for this item and the selected quantity. Final totals and any tax adjustments are calculated at checkout.
We dispatch items in stock within 1–2 working days of receiving payment, or after order confirmation for purchases on invoice. Delivery after dispatch: Germany 1–3 working days, other EU countries 3–7 working days, Switzerland, Norway, Iceland and Liechtenstein 5–10 working days.
Non-binding. We will confirm price and availability.
Secure payment methods
Insured shipping
All items are shipped insured, including DHL tracking. Express shipping is available on request.
Questions about this product?
Please compare the model and version with your part. Unsure about compatibility or what is included? Ask us about this item.
Product details & specifications
Insulated power module with two Darlington transistors in half-bridge configuration and anti-parallel freewheeling diodes. It is rated for 600 V collector-emitter voltage and 150 A collector current, has a DC current gain of at least 75 and an isolation voltage of 2500 V.
General
| Manufacturer | Mitsubishi Electric |
|---|---|
| Type / Model | QM150DY-H |
| Item number | 172410 |
| Series | QM |
Technical Specifications
| Design | Darlington transistor module, 2 elements (half bridge), insulated |
|---|---|
| Collector-emitter voltage VCEX | 600 V |
| Collector current IC | 150 A |
| DC current gain h FE | min. 75 |
| Power dissipation PC | 690 W |
| Collector-emitter saturation voltage | max. 2.0 V (IC 150 A, IB 2 A) |
| Isolation voltage | 2500 V AC (1 min) |
| Main terminals | M5 |
| Weight | 420 g |
