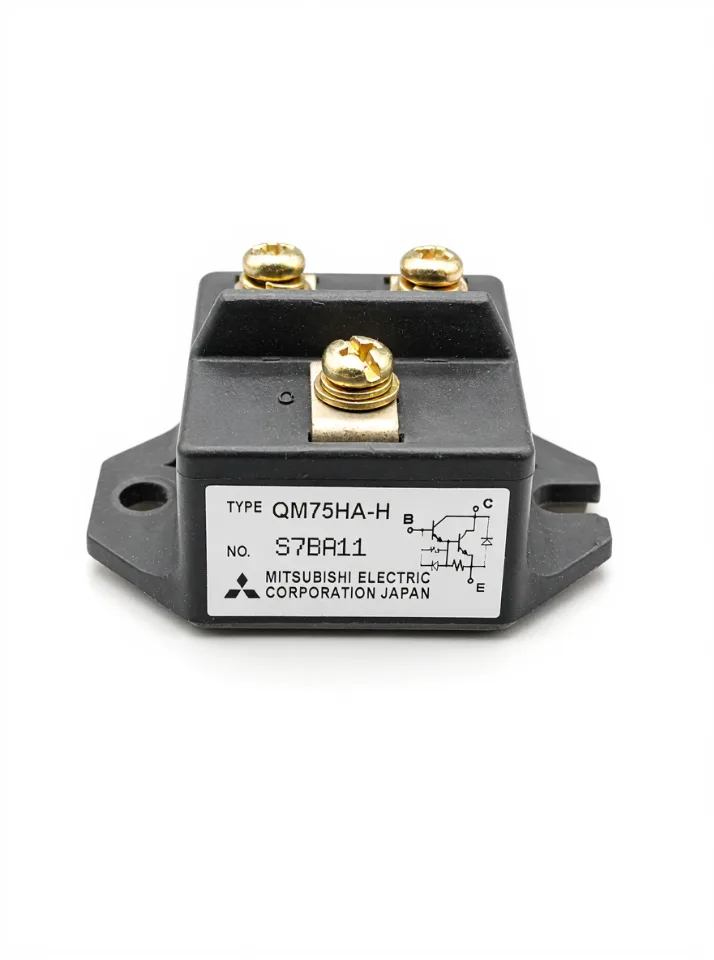

Mitsubishi QM75HA-H High-Power Transistor Module 75A 600V
- Schirmer item number
- 1596
- Manufacturer
- Mitsubishi Electric
Available
59.50 €*
50.00 € net, plus 19 % VAT (delivery to Germany)
* All prices incl. statutory VAT, plus shipping costs
6.19 €
Estimate for this item and the selected quantity. Final totals and any tax adjustments are calculated at checkout.
We dispatch items in stock within 1–2 working days of receiving payment, or after order confirmation for purchases on invoice. Delivery after dispatch: Germany 1–3 working days, other EU countries 3–7 working days, Switzerland, Norway, Iceland and Liechtenstein 5–10 working days.
Non-binding. We will confirm price and availability.
Secure payment methods
Insured shipping
All items are shipped insured, including DHL tracking. Express shipping is available on request.
Questions about this product?
Please compare the model and version with your part. Unsure about compatibility or what is included? Ask us about this item.
Product details & specifications
Isolated bipolar power transistor module with one transistor for 75 A collector current and 600 V collector-emitter voltage. An antiparallel freewheeling diode is integrated, the base plate is isolated from the terminals at 2500 V AC and the main terminals are designed as M4 screw terminals.
General
| Manufacturer | Mitsubishi Electric |
|---|---|
| Type / Model | QM75HA-H |
| Item number | 1596 |
| Series | QM |
Technical Specifications
| Collector-emitter voltage VCEX | 600 V |
|---|---|
| Collector-base voltage VCBO | 600 V |
| Emitter-base voltage VEBO | 7 V |
| Collector current IC (DC) | 75 A |
| Collector reverse current −IC (diode, DC) | 75 A |
| Power dissipation PC (TC = 25 °C) | 350 W |
| Base current IB (DC) | 4.5 A |
| Diode surge current −ICSM | 750 A |
| DC current gain h FE | min. 75 |
| Collector-emitter saturation voltage VCE(sat) | max. 2.0 V (IC = 75 A, IB = 1 A) |
| Base-emitter saturation voltage VBE(sat) | max. 2.5 V |
| Diode forward voltage | max. 1.85 V (−IC = 75 A) |
| Turn-on time ton | max. 2.5 µs |
| Storage time ts | max. 12 µs |
| Fall time tf | max. 3.0 µs |
| Thermal resistance Rth(j-c) transistor | max. 0.35 °C/W |
| Thermal resistance Rth(j-c) diode | max. 1.3 °C/W |
| Junction temperature Tj | −40 to +150 °C |
| Storage temperature | −40 to +125 °C |
| Isolation voltage | 2500 V AC (1 min) |
| Main terminals | M4 |
| Mounting screws | M5 |
| Weight | 90 g (typ.) |
| Approval | UL recognized (File No. E80271) |
