Phoenix Contact sensor/actuator box SACB-8/16-L- 5,0PUR SCO P 1452725
- Schirmer item number
- 2221
- Manufacturer
- Phoenix Contact
Available on request
402.22 €*
338.00 € net, plus 19 % VAT (delivery to Germany)
* All prices incl. statutory VAT, plus shipping costs
What happens next
We will get back to you as soon as possible with all the details.
Secure payment methods
Insured shipping
All items are shipped insured, including DHL tracking. Express shipping is available on request.
Questions about this product?
Please compare the model and version with your part. Unsure about compatibility or what is included? Ask us about this item.
Product details & specifications

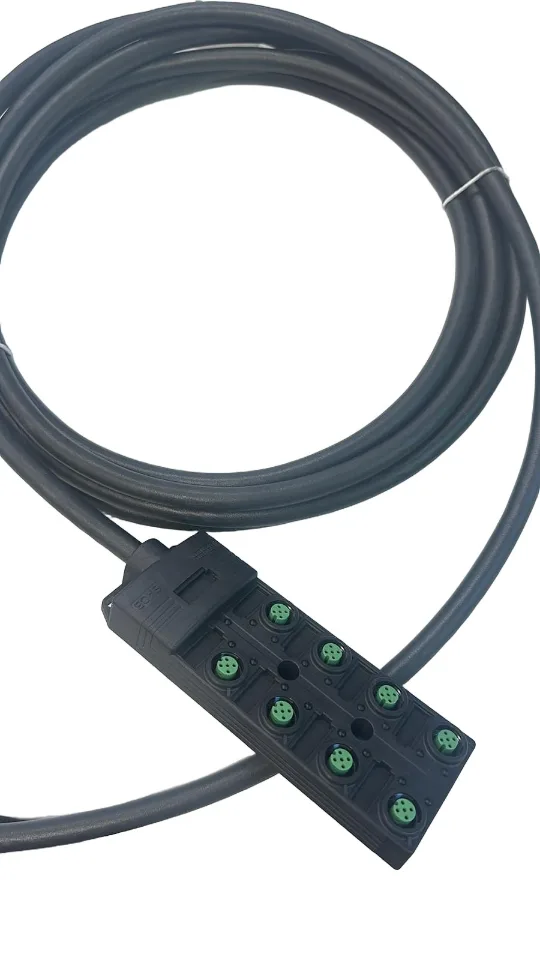

The SACB-8/16-L- 5,0PUR SCO P is a sensor/actuator box with eight 5-pin M12 sockets with A coding and double slot assignment. The housing is made of PBT, and the permanently connected cable is 5 m long with a PUR outer sheath.
General
| Manufacturer | Phoenix Contact |
|---|---|
| Type / model | SACB-8/16-L- 5,0PUR SCO P |
| Article number | 2221 |
| Order number | 1452725 |
| Series | SACB |
Technical data
| Sensor/actuator connection | M12 SPEEDCON socket |
|---|---|
| Number of slots | 8 |
| Number of poles | 5 |
| Coding | A |
| Slot assignment | double |
| Status indicator | yes, PNP |
| Master cable connection | fixed, 180° |
| Cable length | 5 m |
| Shielding | no |
| Rated voltage | 24 V DC |
| Max. operating voltage | 30 V DC |
| Current carrying capacity per I/O signal | 2 A |
| Current carrying capacity per slot | 4 A |
| Total current | 12 A |
| Degree of protection | IP65 / IP67 |
| Ambient temperature (operation) | -25 °C … 80 °C |
| Diagnostic LEDs | supply green, I/O status yellow |
| Housing material | PBT |
| Potting compound | PUR |
| Contact material | Cu alloy, gold-plated |
| Cable type | PUR/PVC black, LiYY11Y-HF |
| Conductor cross-section, signal | 16 x 0.5 mm² |
| Conductor cross-section, supply | 3 x 1 mm² |
| Cable outer diameter | 10.5 mm ± 0.2 mm |
| Cable nominal voltage | 300 V |
| Tightening torque, slot | 0.4 Nm |
| GTIN | 4046356554008 |
