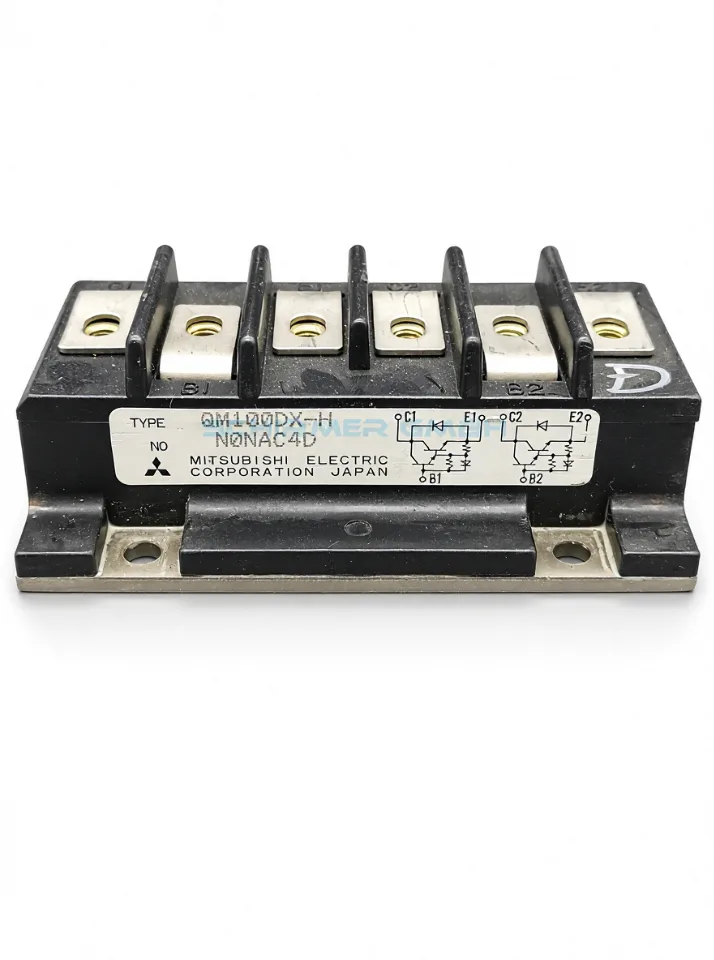

Mitsubishi Electric QM100DX-H Darlington transistor module / E4443-820-009
- Schirmer item number
- 1540
- Manufacturer
- Mitsubishi Electric
Available
95.20 €*
80.00 € net, plus 19 % VAT (delivery to Germany)
* All prices incl. statutory VAT, plus shipping costs
6.19 €
Estimate for this item and the selected quantity. Final totals and any tax adjustments are calculated at checkout.
We dispatch items in stock within 1–2 working days of receiving payment, or after order confirmation for purchases on invoice. Delivery after dispatch: Germany 1–3 working days, other EU countries 3–7 working days, Switzerland, Norway, Iceland and Liechtenstein 5–10 working days.
Non-binding. We will confirm price and availability.
Secure payment methods
Insured shipping
All items are shipped insured, including DHL tracking. Express shipping is available on request.
Questions about this product?
Please compare the model and version with your part. Unsure about compatibility or what is included? Ask us about this item.
Product details & specifications
Insulated power module with two Darlington transistors in dual configuration for 600 V and 100 A collector current. It belongs to the H version of the QM series and works with bipolar transistors instead of IGBTs.
General
| Manufacturer | Mitsubishi Electric |
|---|---|
| Type / Model | QM100DX-H |
| Item number | 1540 |
| Series | QM |
Technical Specifications
| Module type | Darlington transistor module |
|---|---|
| Circuit | Dual module (D type, two transistors) |
| Voltage class | 600 V |
| Collector current IC | 100 A |
| Housing | Insulated |
| Reference number | E4443-820-009 |
